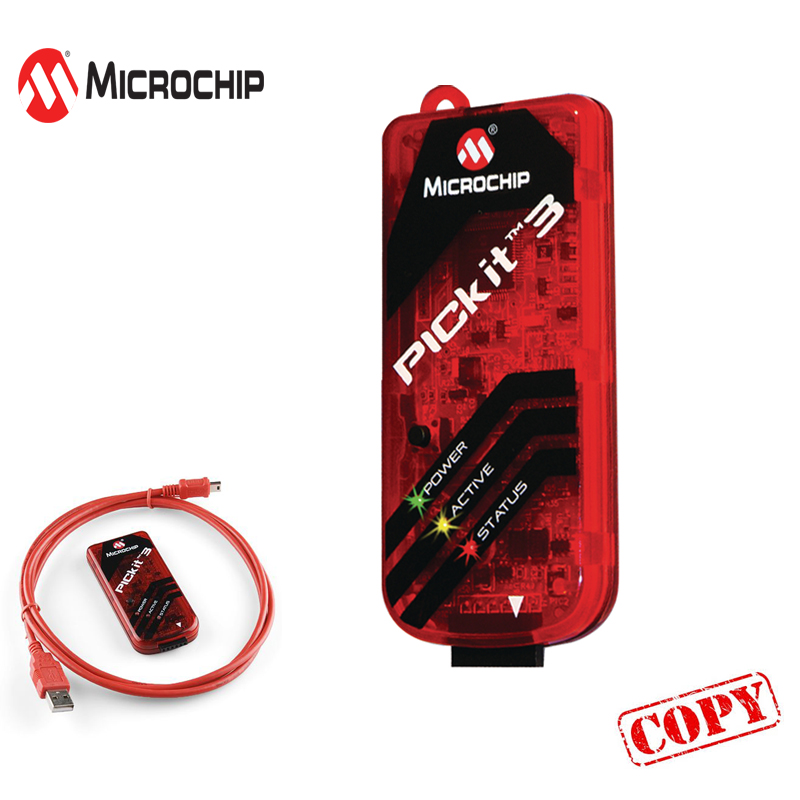

PICkit™ 3 In-Circuit Debugger (PG164130) MPLAB PICkit 3 allows debugging and programming of PIC Flash microcontrollers and dsPIC digital signal controllers using up to the powerful and affordable MPLAB X's Graphical User Interface Integrated Development E
موجود در انبار
بازگشت کالا به دلیل "انصراف از خرید" در صورتی مورد قبول است که پلمپ کالا باز نشده باشد.
1) The speed of PICkit 3 will be faster, the main chip of PICkit 3 is PIC24, the speed is slightly higher than that of Pickit2, and the USB is still Full12M; 2) Expand offline download space (512Kbytes), PICkit 2 (128Kbytes), realize offline programming of Microchip microcontroller; 3) Provide a more accurate reference voltage source, increase the voltage range (1.8-5V VDD; 1.8-14V VPP), PICkit 2 (2.5-5V VDD); 4) More chip series are supported. Currently, PICkit 3 already supports PIC16F193X and PIC32; PICkit 2 will not support PIC32 debugging in the future; 5) PICkit 3 already supports WIN7 system, but PICkit 2 does not;
Please note: Some chips require a debug header to debug, usually less-pin chips below 20pin
Device
Pin Count
Header Part Number
ICE/ICD Device Used
Vdd Max
PIC10F200/2/4/6
8/14
AC162059
PIC16F505-ICD
5.5V
PIC10F220/2
8/14
AC162070
PIC16F506-ICD
5.5V
PIC12F508/509
8/14
AC162059
PIC16F505-ICD
5.5V
PIC12F510
8/14
AC162070
PIC16F506-ICD
5.5V
PIC12F519
8/14
AC162096
PIC16F526-ICD
5.5V
PIC12F609/HV609
28
AC162083
PIC16F616-ICD
5.5V
PIC12F615/HV615
28
AC162083
PIC16F616-ICD
5.5V
PIC12F629
8
AC162050
PIC12F675-ICD(1)
5.5V
PIC12F635
14
AC162057
PIC16F636-ICD
5.5V
PIC12F675
8
AC162050
PIC12F675-ICD(1)
5.5V
PIC12F683
8
AC162058
PIC12F683-ICD
5.5V
PIC16F505
8/14
AC162059
PIC16F505-ICD
5.5V
PIC16F506
8/14
AC162070
PIC16F506-ICD
5.5V
PIC16F526
8/14
AC162096
PIC16F526-ICD
5.5V
PIC16F610/HV610
14/16
AC162083
PIC16F616-ICD
5.5V
PIC16F616/HV616
14/16
AC162083
PIC16F616-ICD
5.5V
PIC16F627A/628A
18
AC162053
PIC16F648A-ICD
5.5V
PIC16F630
14
AC162052
PIC16F676-ICD
5.5V
PIC16F631
20
AC162061
PIC16F690-ICD
5.5V
PIC16F636
14
AC162057
PIC16F636-ICD
5.5V
PIC16F639 (Dual die)
20
AC162066
PIC16F636-ICD
5.5V
PIC16F648A
18
AC162053
PIC16F648A-ICD
5.5V
PIC16F676
14
AC162052
PIC16F676-ICD
5.5V
PIC16F677
20
AC162061
PIC16F690-ICD
5.5V
PIC16F684
14
AC162055
PIC16F684-ICD
5.5V
PIC16F685/687
20
AC162061
PIC16F690-ICD
5.5V
PIC16F688
14
AC162056
PIC16F688-ICD
5.5V
PIC16F689/690
20
AC162061
PIC16F690-ICD
5.5V
PIC16F716
18
AC162054
PIC16F716-ICD(1)
5.5V
PIC16F785/HV785
20
AC162060
PIC16F785-ICD
5.5V
PIC18F13K50 PIC18F14K50
20
AC244023
PIC18F14K50-ICE
5.5V
PIC18LF13K50 PIC18LF14K50
20
AC244024
PIC18LF14K50-ICE
3.6V 2.75V(2)
Note 1: These ICE/ICD devices have limitations. See header manual for details.
