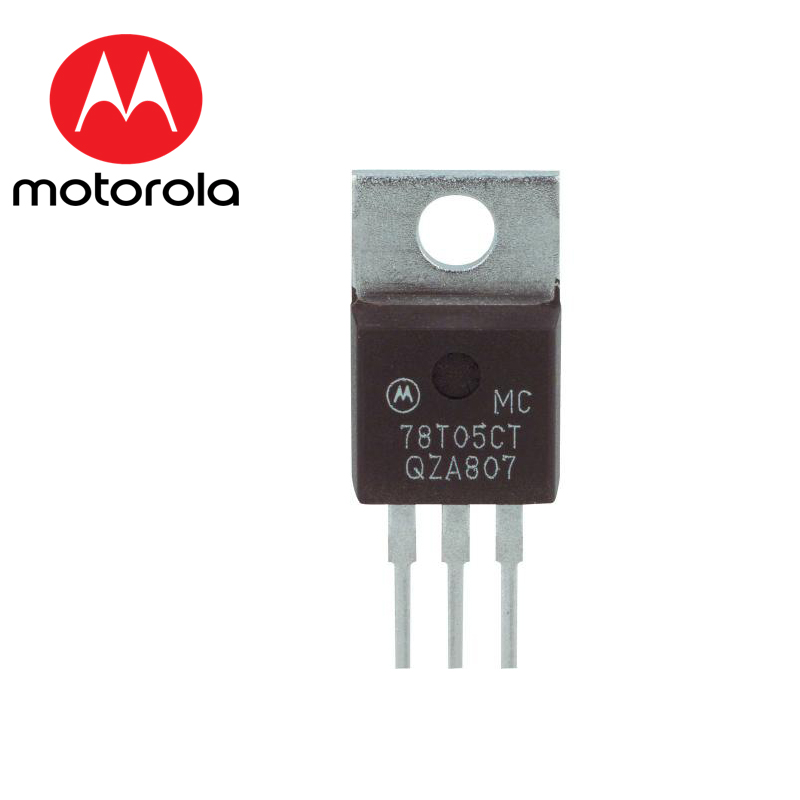

L7809CV

MC78xxCT Series New Product Vishay Semiconductor 3-Terminal Fixed Positive Voltage Regulators MC78xxCT TO-220AB Pin Definition 1. Input 2. Ground 3. Output (Heatsink/ tab connected to pin 2) Description These voltage regulators are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heatsinking the MC78xxCT can deliver output currents in excess of 1.5 ampere..
